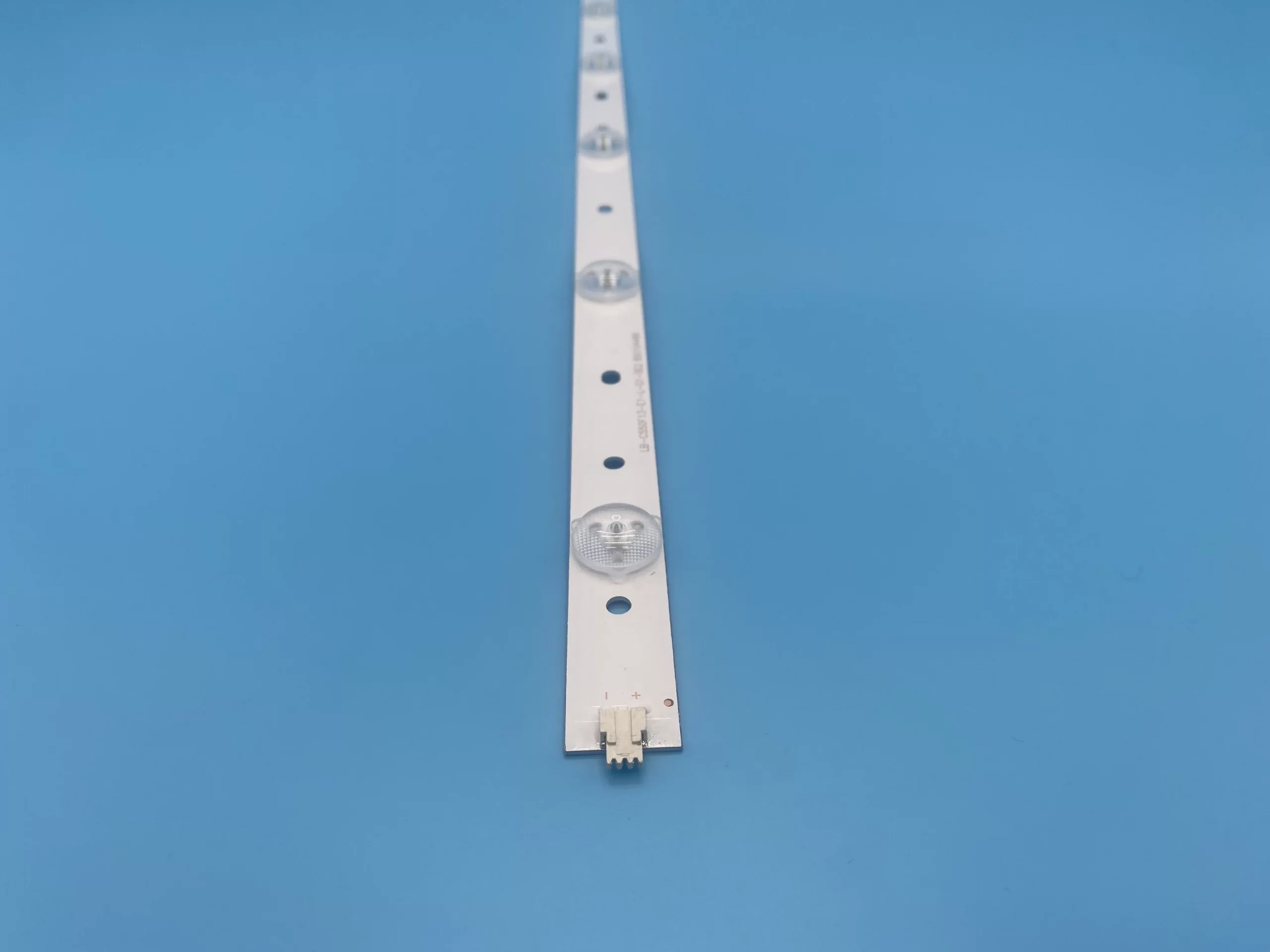

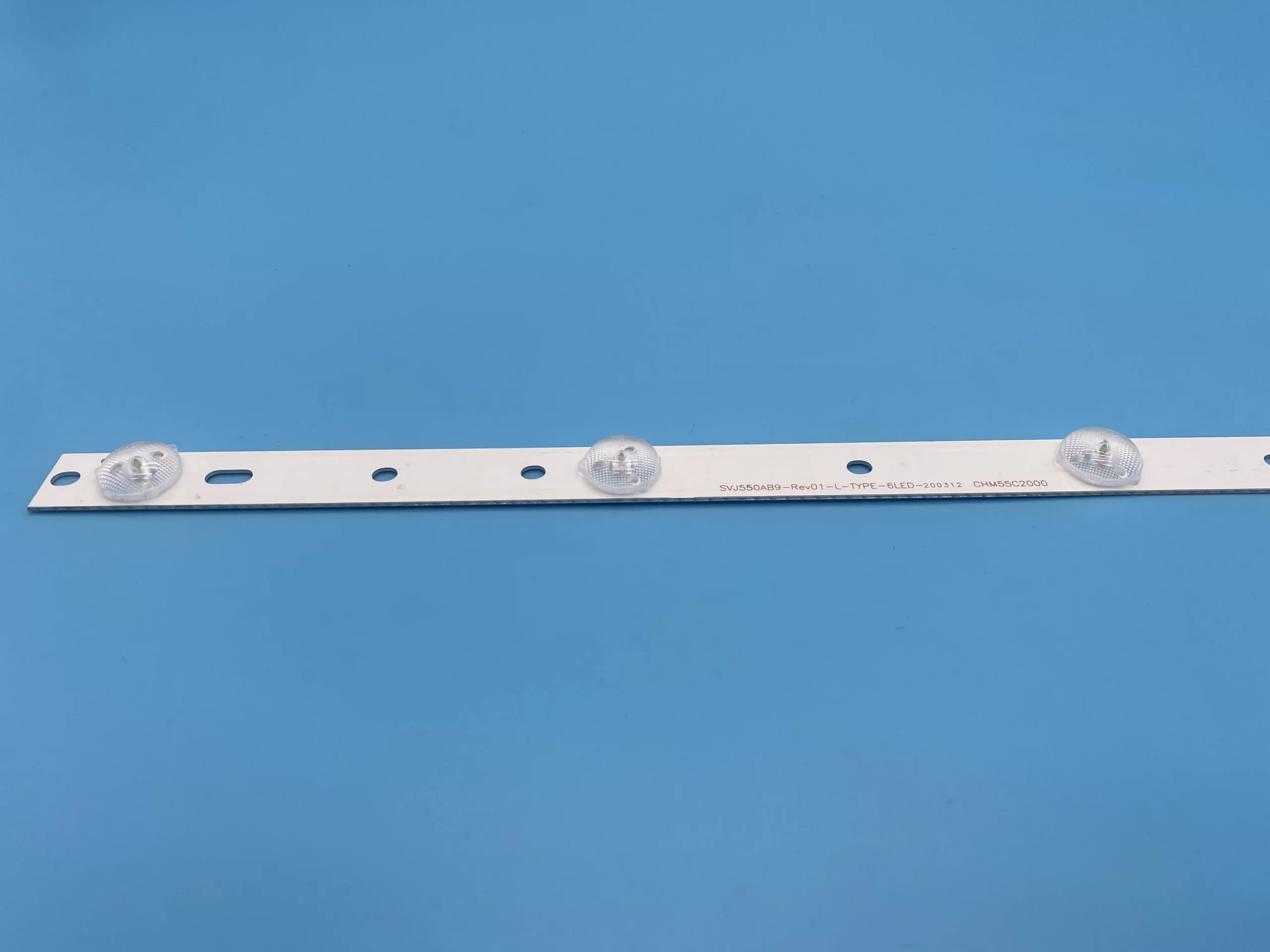

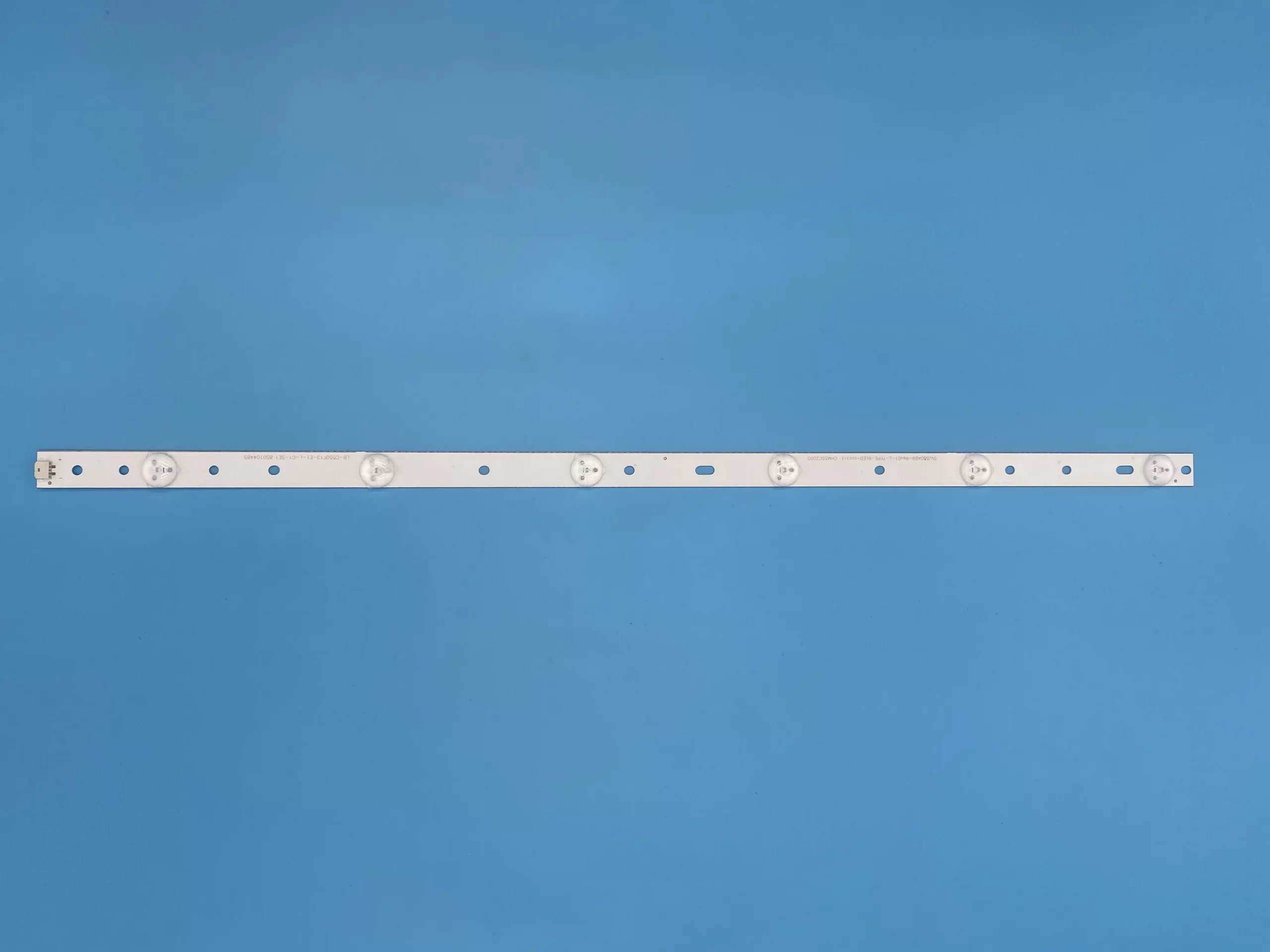

Applicable Changhong LED55C2000i light bar SVJ550AB9-Rev01-R/L-TYPE-6LED
· Model: SVJ550AB9-Rev01-L-TYPE-6LED LB-C550F13-E1-L-G1-SE1/SVJ550AB9-Rev01-R-TYPE-6LED LB-C550F13-E1-R-G1-SE2
· Lens type: Convex Lenses
· Material: aluminum
· LED quantity: 6LEDs a set of 5 pcs
· High brightness
· Long operating life, typically lasting 100,000 hours
· More energy saving
· More environmentally friendly
· Easy to install
| Type | PCB Size | LEDs | Connector | POWER CONSUMPTION | INPUT VOLTAGE | Tv Brand |
| SVJ550AB9-Rev01-L-TYPE-6LED LB-C550F13-E1-L-G1-SE1 |
557*17*1.0mm | SMD2835 6S1P |
B3001 3.0-2P | 1W | 3V | Changhong |
| SVJ550AB9-Rev01-R-TYPE-6LED LB-C550F13-E1-R-G1-SE2 |
584*17*1.0mm | SMD2835 6S1P |
1.0-3P lying paste with lock + B3001 3.0-2R | 1W | 3V | Changhong |
