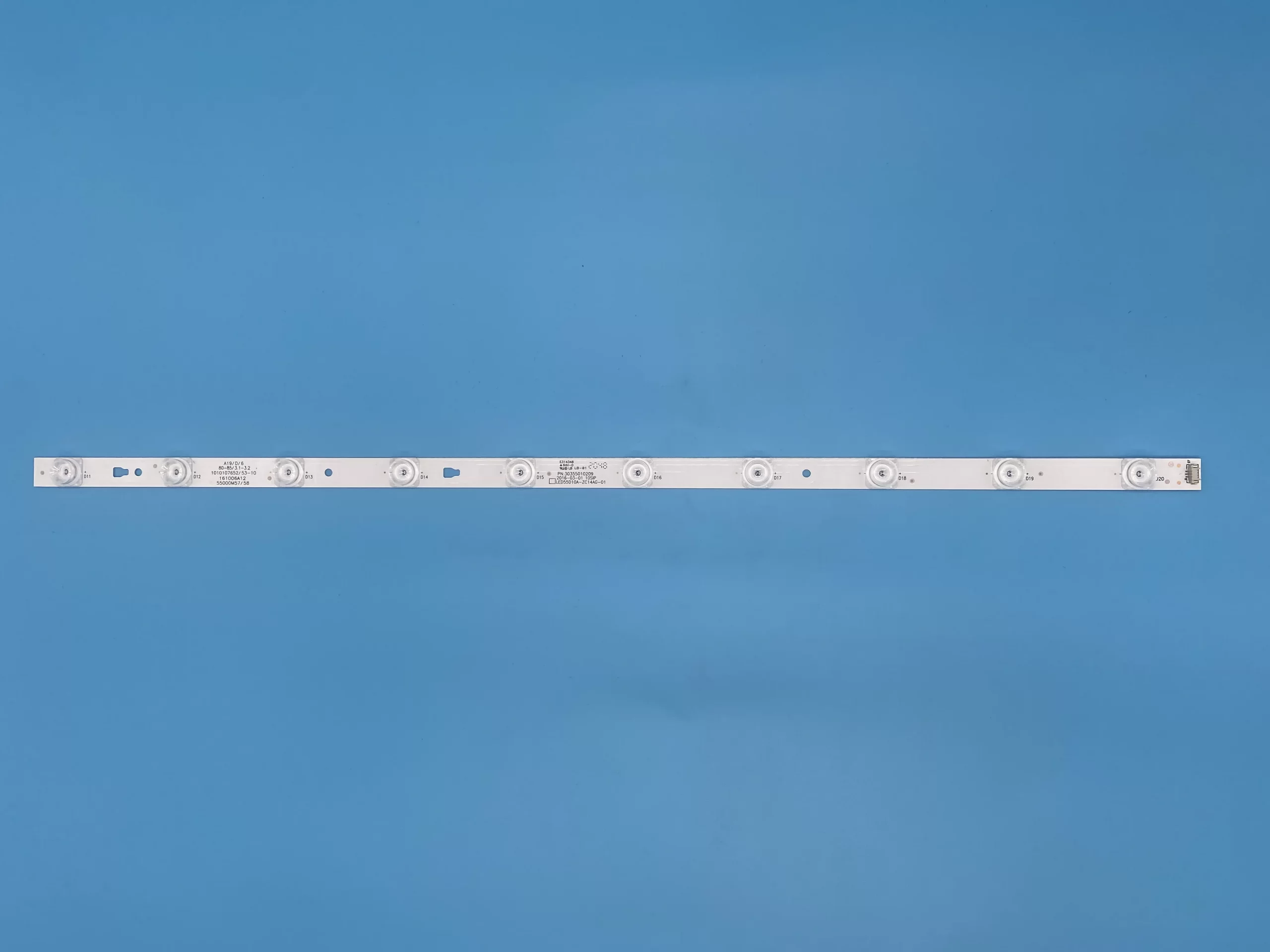

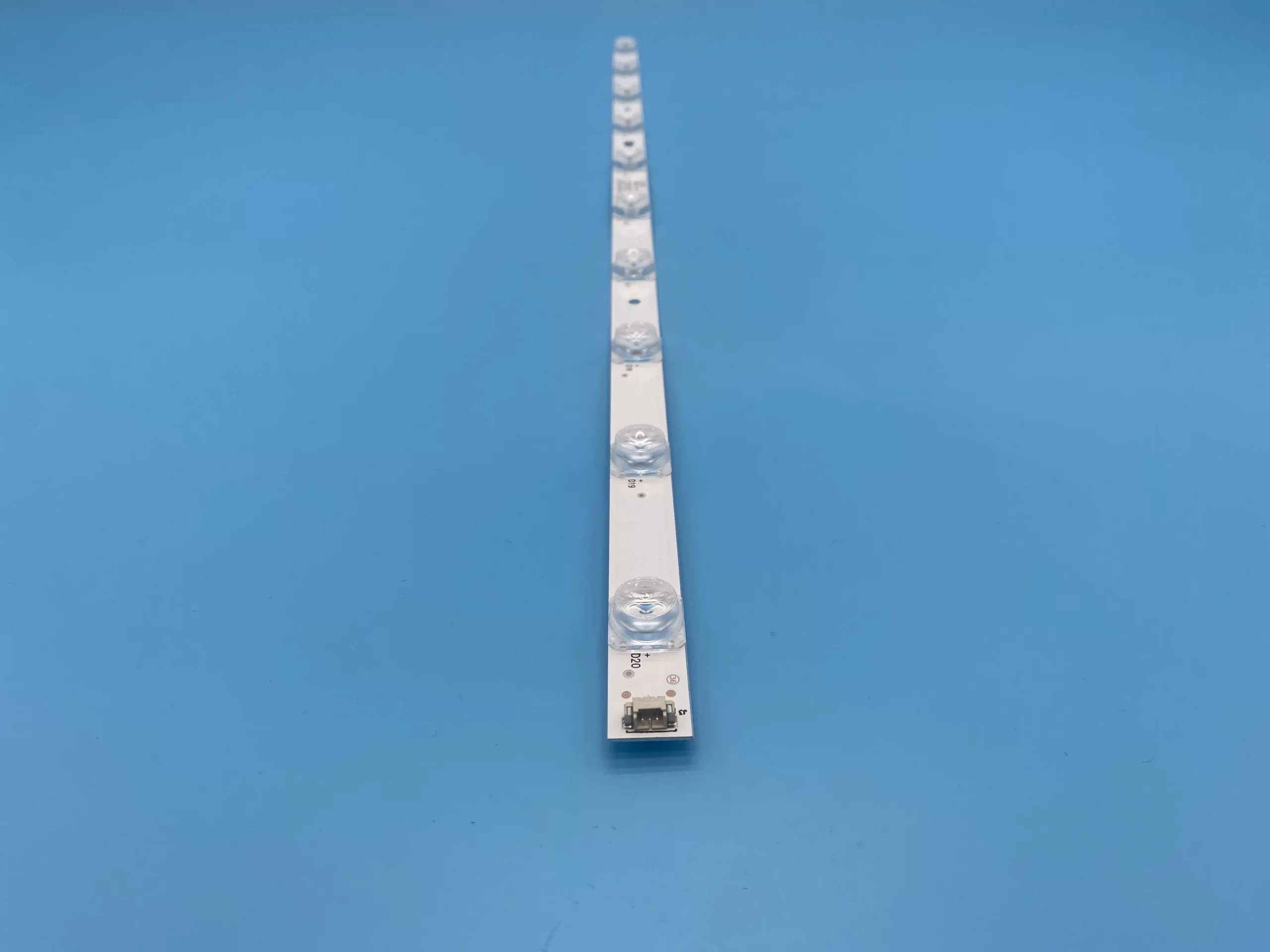

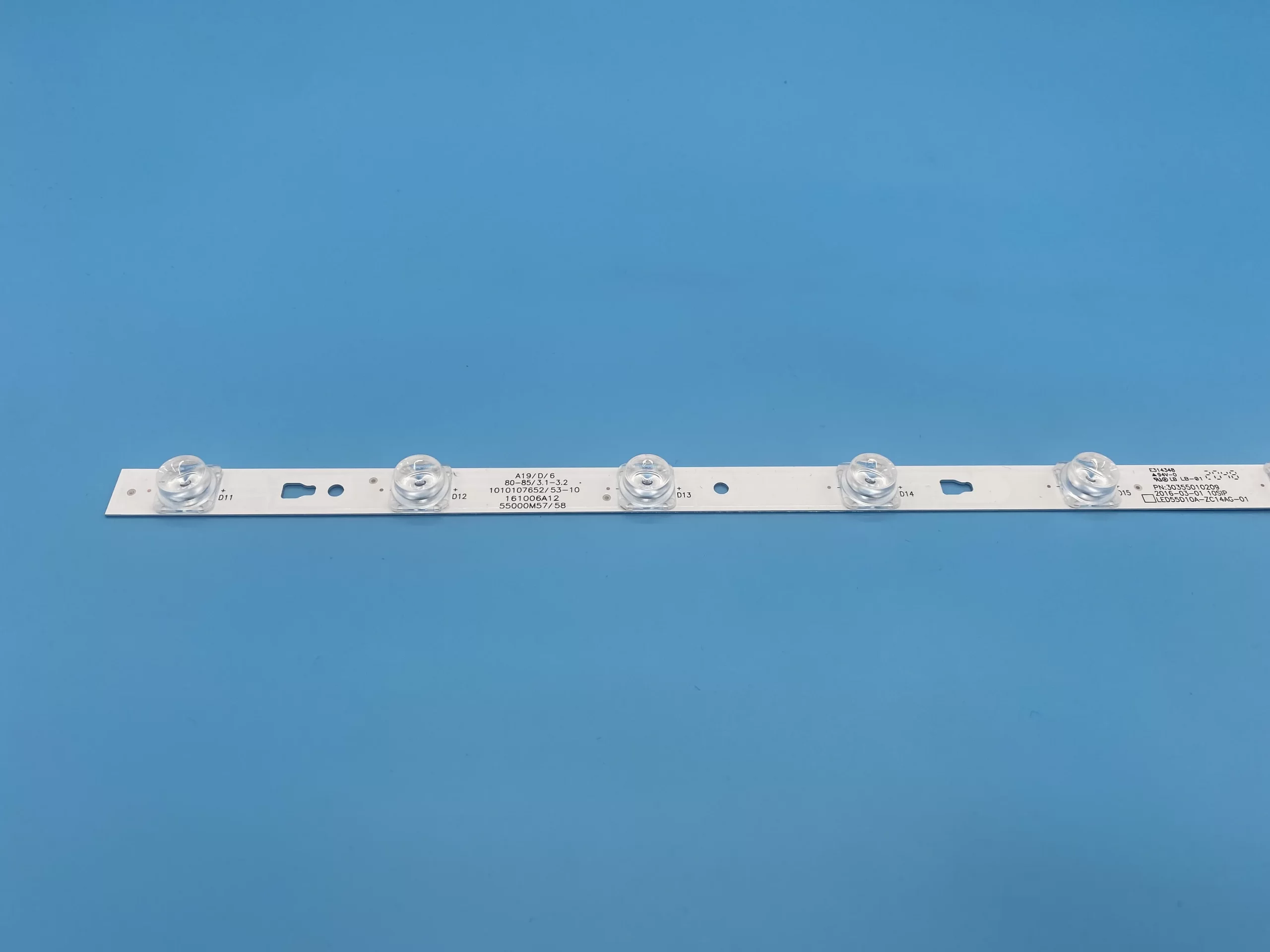

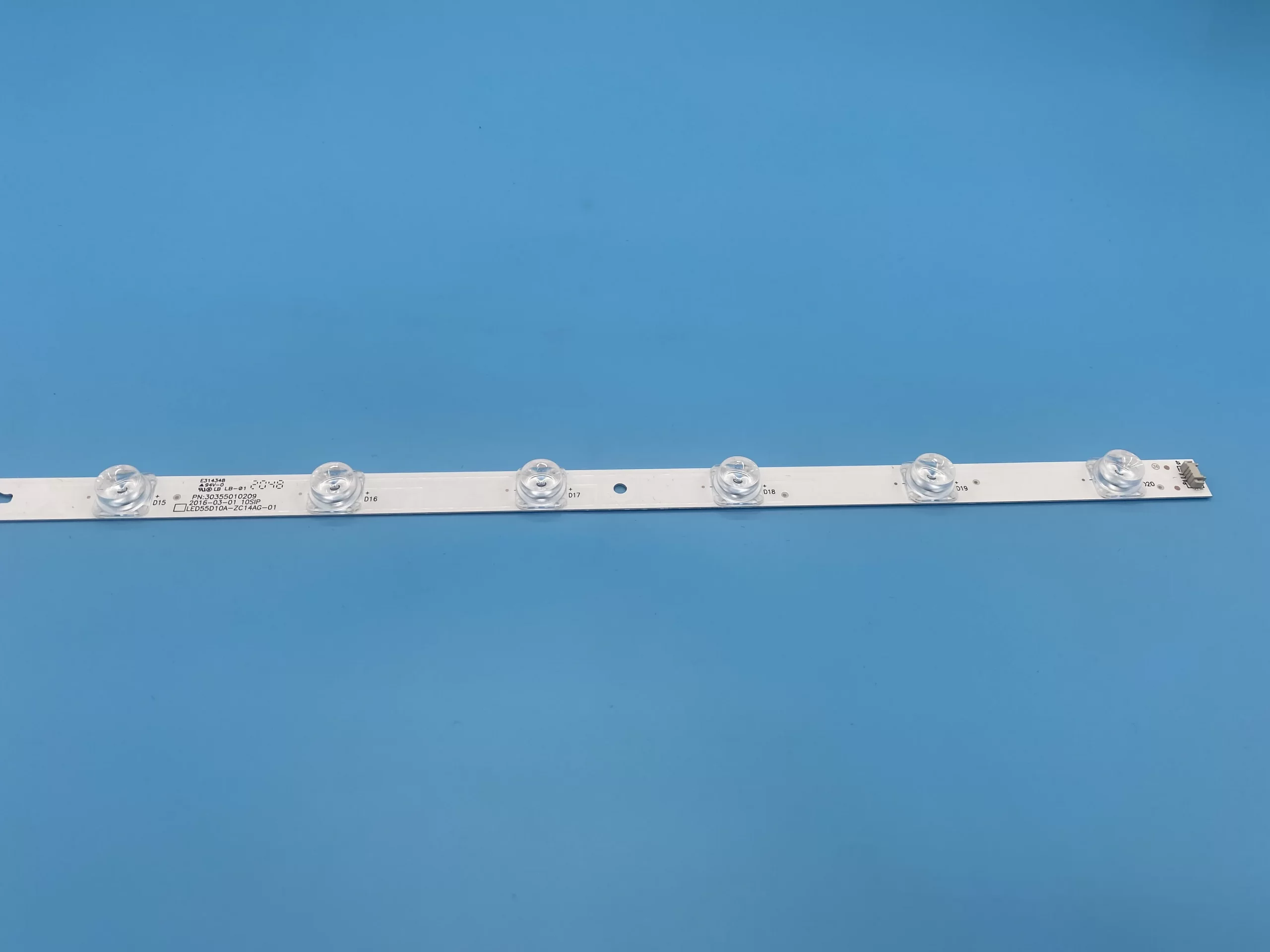

Applicable Konka TCL TV LED55K36U light bar LED55D10A-ZC14AG-01 30355010209
· Model: LED55D10A-ZC14AG-01/LED55D10B-ZC14AG-01
· Lens type: Small concave lens
· Material: aluminum
· LED quantity: 10LEDs a set of 14 pcs
· High brightness
· Long operating life, typically lasting 100,000 hours
· More energy saving
· More environmentally friendly
· Easy to install
| Type | PCB Size | LEDs | Connector | POWER CONSUMPTION | INPUT VOLTAGE | Tv Brand |
| LED55D10A-ZC14AG-01 | 567*15*1.0mm | SMD2835 10S1P |
T1251 1.25-3P(lying paste) | 1W | 3V | Konka/TCL |
| LED55D10B-ZC14AG-01 | 567*15*1.0mm | SMD2835 5S2P |
T1251 1.25-3P(lying sticker)2PCS | 1W | 3V | Konka/TCL |
