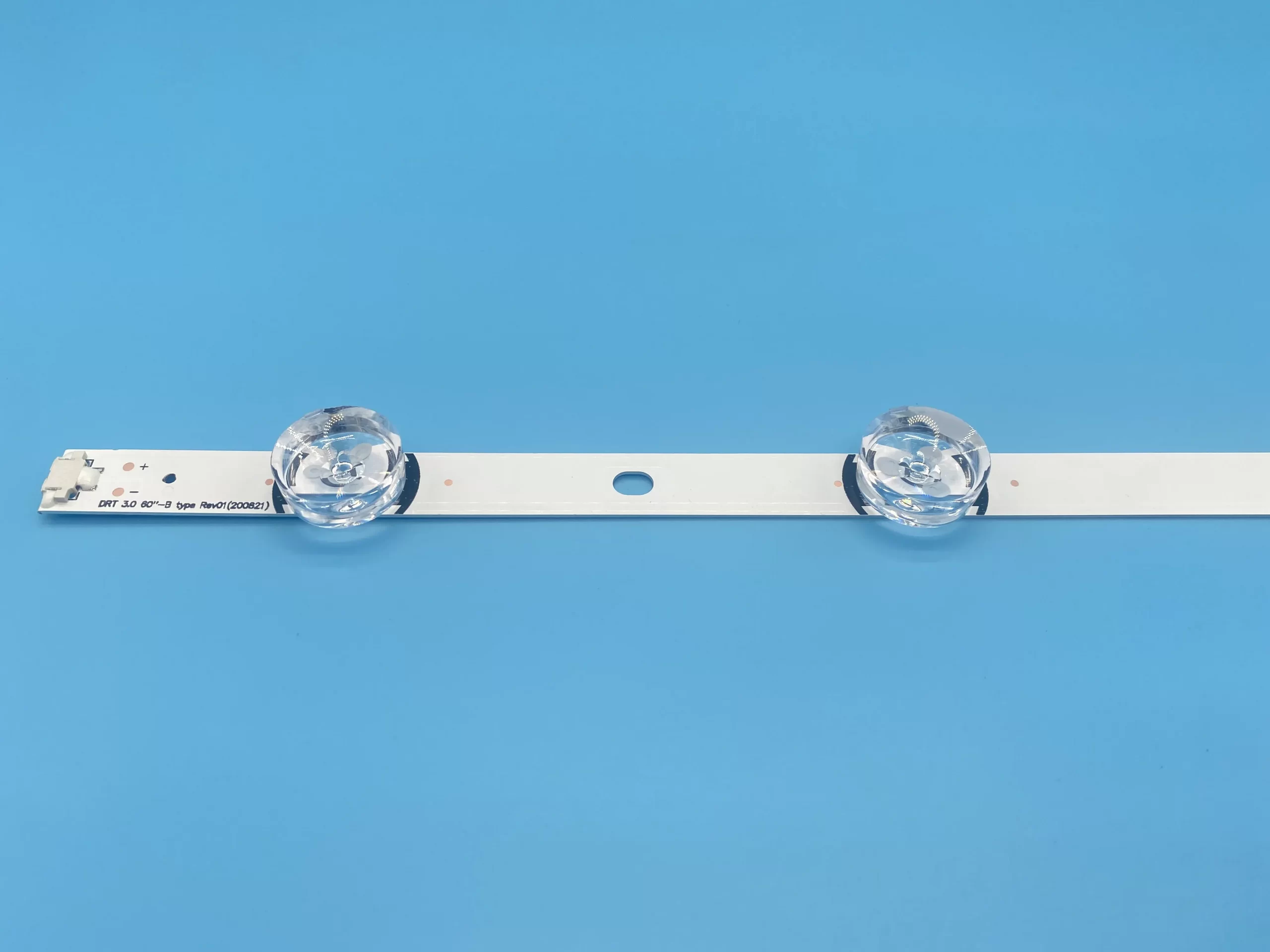

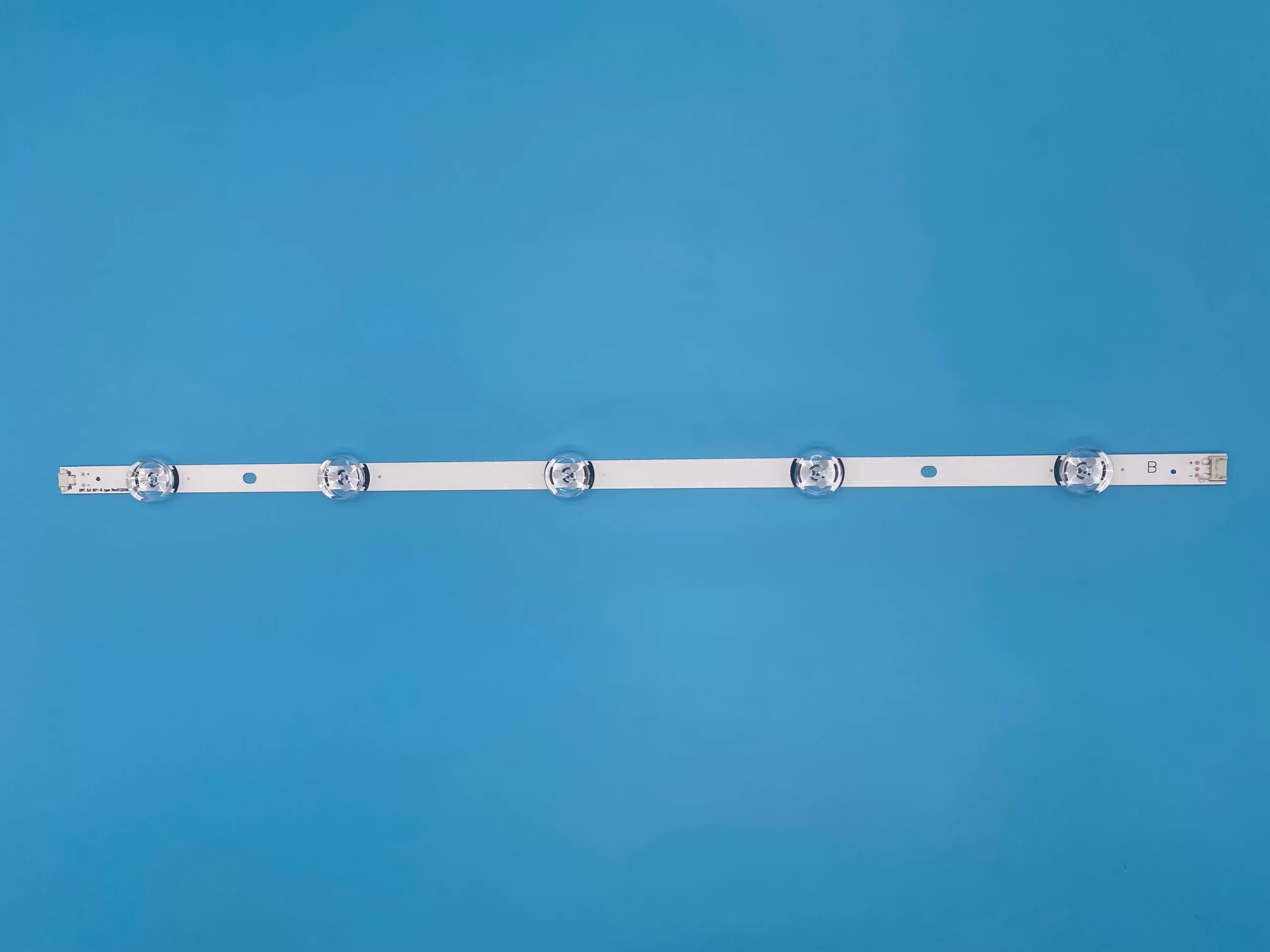

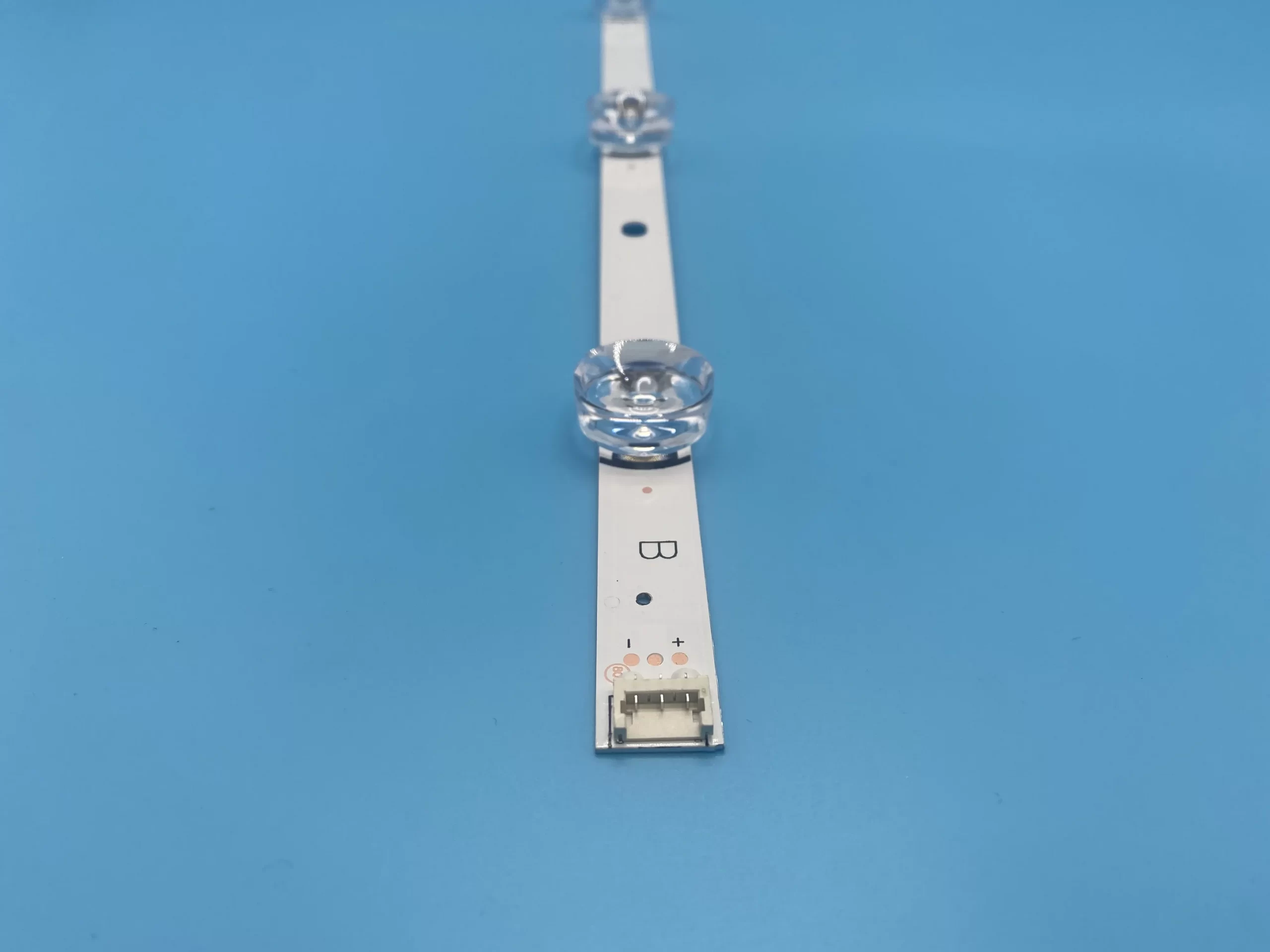

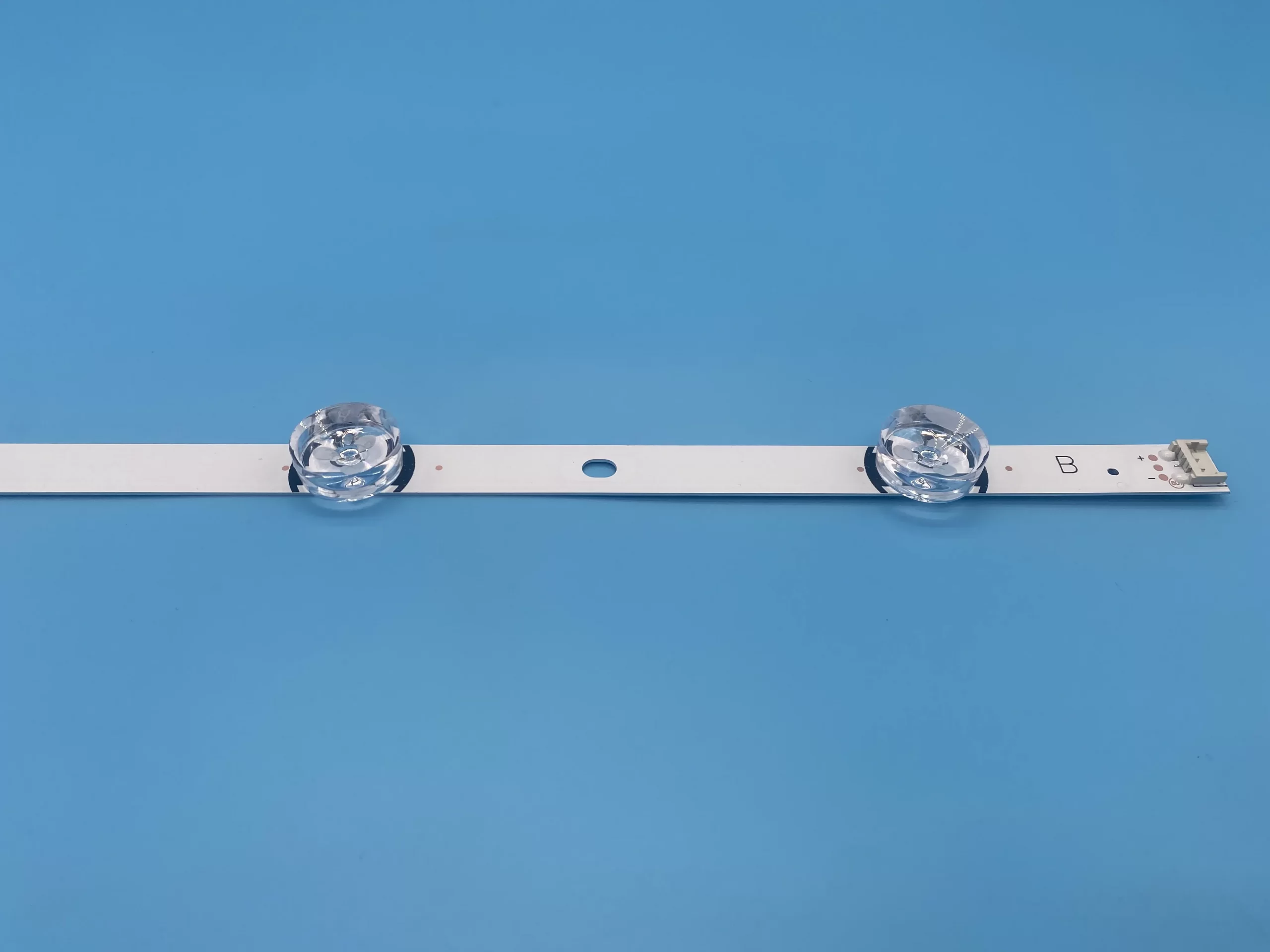

For LG Tv Backlight Strips DRT 3.0 60″-A/B type Rev01
· Model: DRT 3.0 60″-A/B type Rev01
· Lens type: LG22MM Large concave lens
· Material: aluminum
· LED quantity: 6LEDs/5LEDs a set of 12 pcs
· High brightness
· Long operating life, typically lasting 100,000 hours
· More energy saving
· More environmentally friendly
· Easy to install
| Type | PCB Size | LEDs | Connector | POWER CONSUMPTION | INPUT VOLTAGE | Tv Brand |
| DRT 3.0 60″-A type Rev01 | 650*15*1.0mm | SMD3030 6S1P |
15037-5A3T B4001 4.0-2R |
2W | 6V | LG |
| DRT 3.0 60″-B type Rev01 | 595*15*1.0mm | SMD3030 5S1P |
15037-5A3T B4001 4.0-2R |
2W | 6V | LG |
