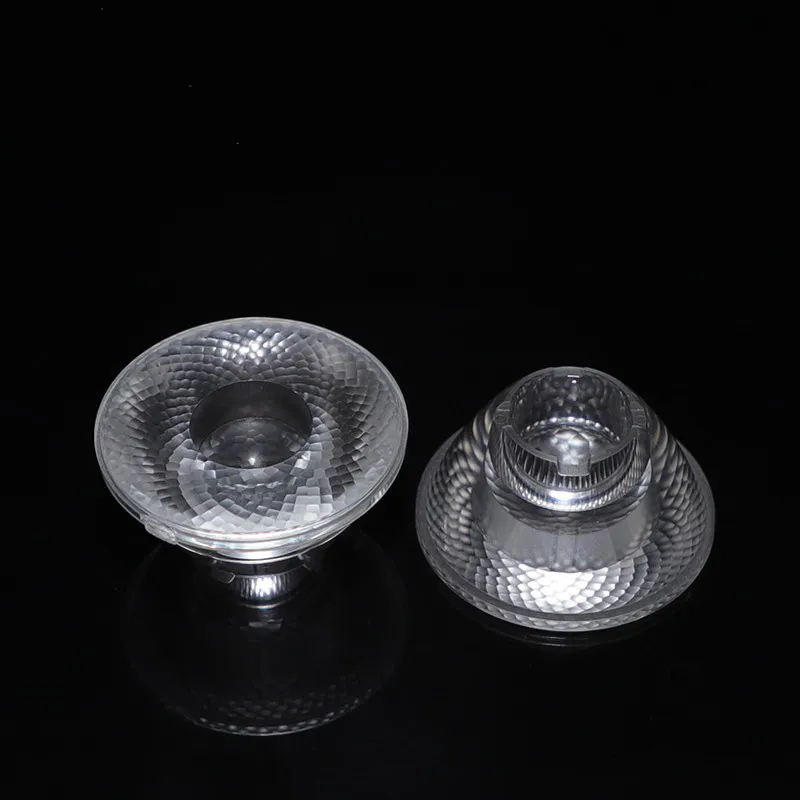

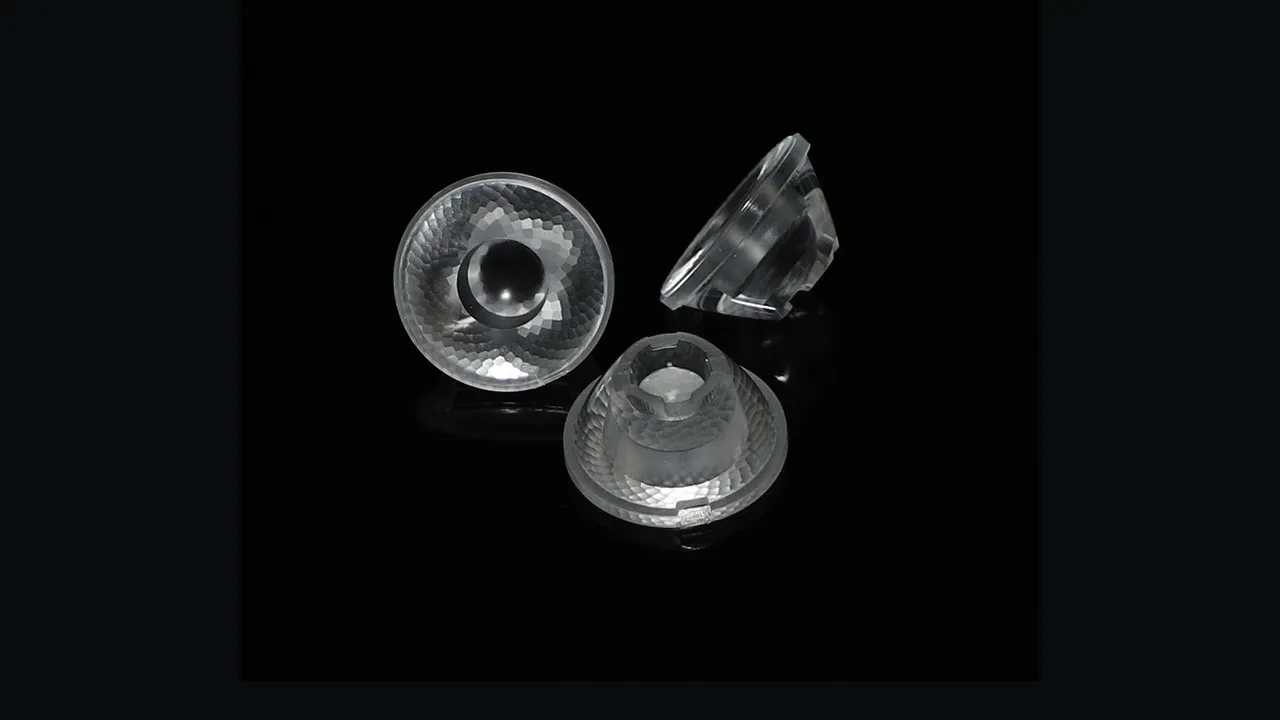

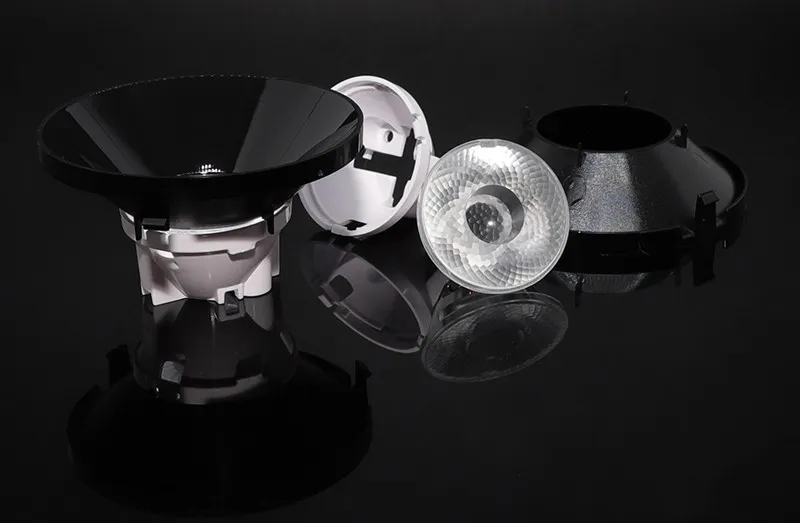

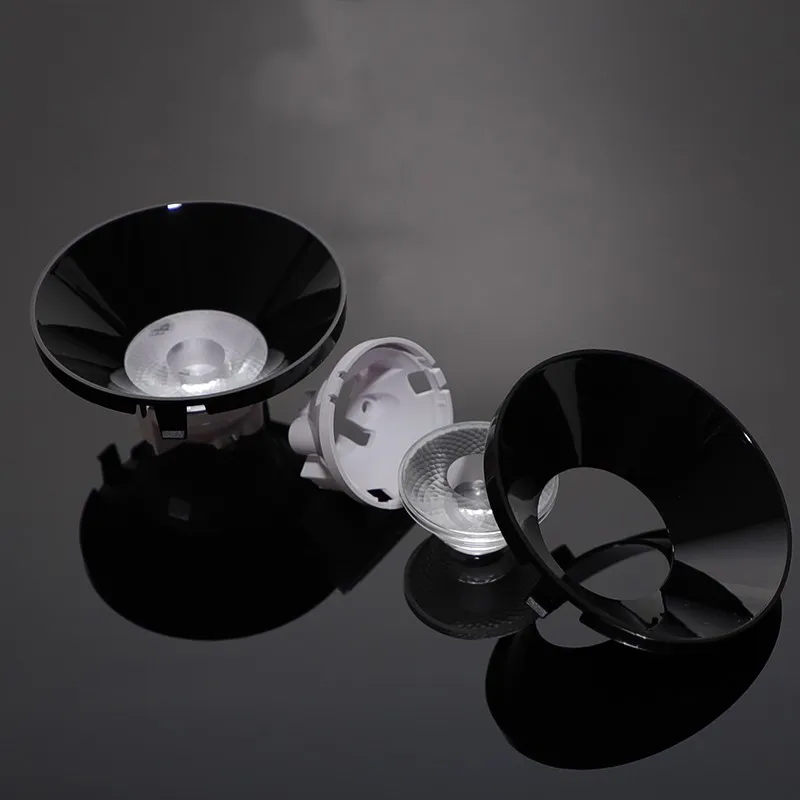

JKM-DK-LENS-11S-Series
The JKM LED Lens product family offers a cost-efficient solution for high-quality Down Lights.

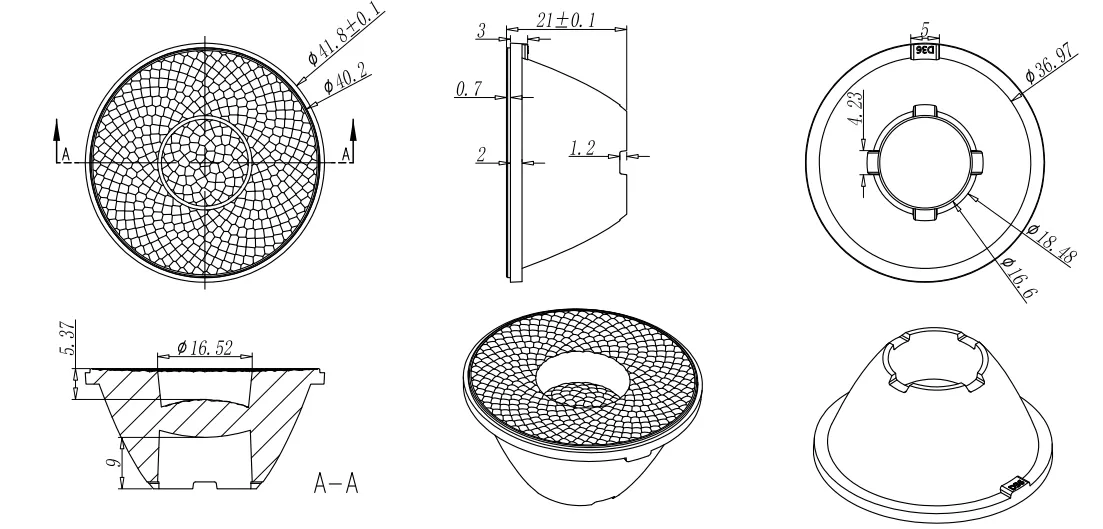

it’s compatible with up to Diameter: φ28/35/42MM Height: 14/18/21mm Down Lights, complete in beam angles
| Type | Specification | Angle | Material | Temperature Resistance | LED Series | Applications |
| JKM-DK-28-15-LENS-11S JKM-DK-35-12-LENS-11S JKM-DK-42-12-LENS-11S |

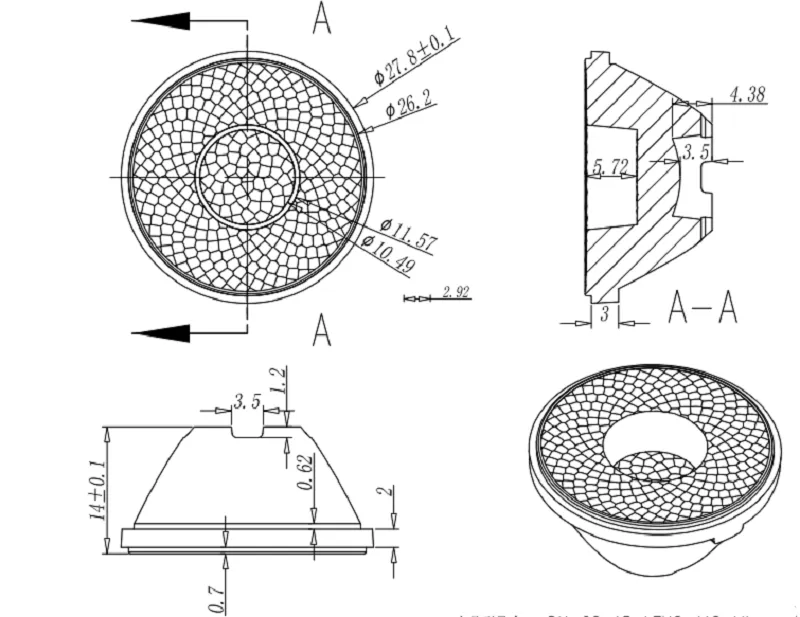

Diameter: φ28/35/42mm Height: 14/18/21mm |

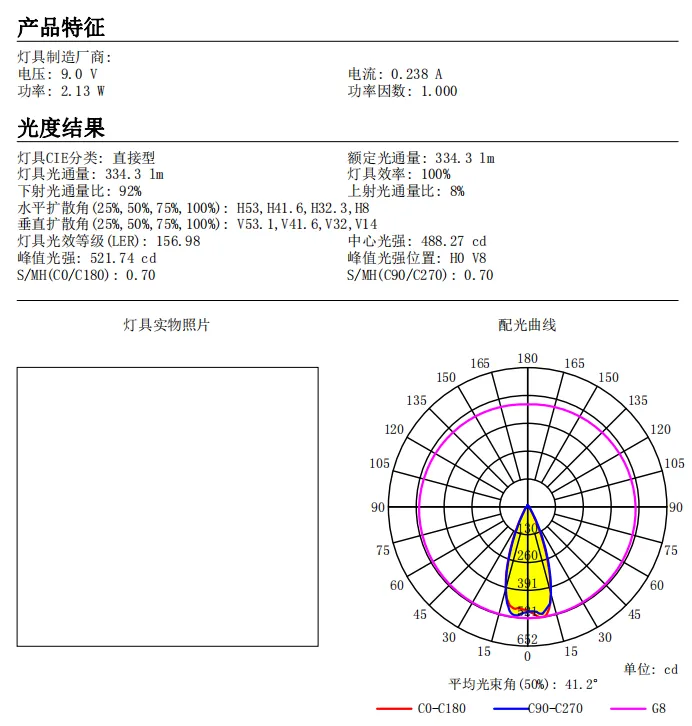

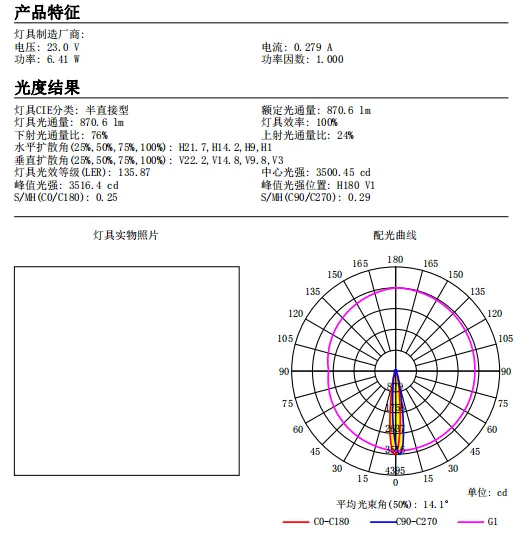

12°/15°/24°/36° | PMMA | -35°C + 135°C | CXA1304/CLU7A2/CLU7B2 | Downlights |
